LDAP

XiVO offers the possibility to integrate LDAP servers.

Once configured properly, you’ll be able to search your LDAP servers from your XiVO and from your phones (if they support this feature).

Add a LDAP Server

In Configuration ‣ Management ‣ LDAP Servers

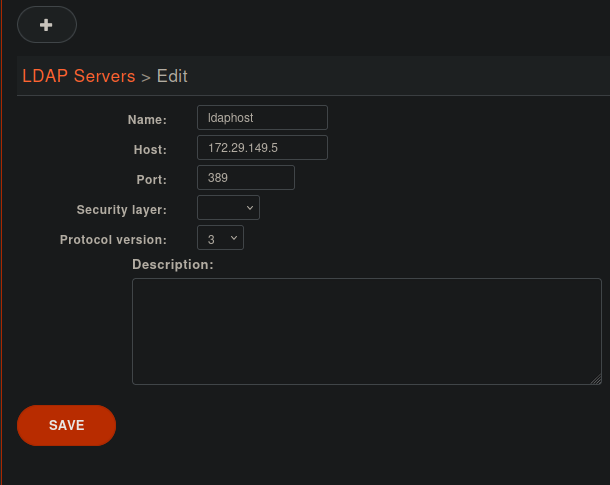

Adding a LDAP server

Enter the following information:

• Name: the server’s display name

• Host: the hostname or IP address

• Port: the port number (default: 389)

• Security layer: select SSL if it is activated on your server and you want to use it (default: disabled)

  • SSL means TLS/SSL (doesn’t mean StartTLS) and port 636 should then be used

• Protocol version: the LDAP protocol version (default: 3)

Notes on SSL/TLS usage

If you are using SSL with an LDAP server that is using a CA certificate from an unknown certificate authority, you’ll have to put the certificate file as a single file ending with .crt into /usr/local/share/ca-certificates and run update-ca-certificates.

You also need to make sure that the /etc/ldap/ldap.conf file contains a line TLS_CACERT /etc/ssl/certs/ca-certificates.crt.

After that, restart spawn-fcgi with service spawn-fcgi restart.

Also, make sure to use the FQDN of the server in the host field when using SSL. The host field must match exactly what’s in the CN attribute of the server certificate.

Add a LDAP Filter

Next thing to do after adding a LDAP server is to create a LDAP filter.

In Services ‣ IPBX configuration ‣ LDAP Filters :

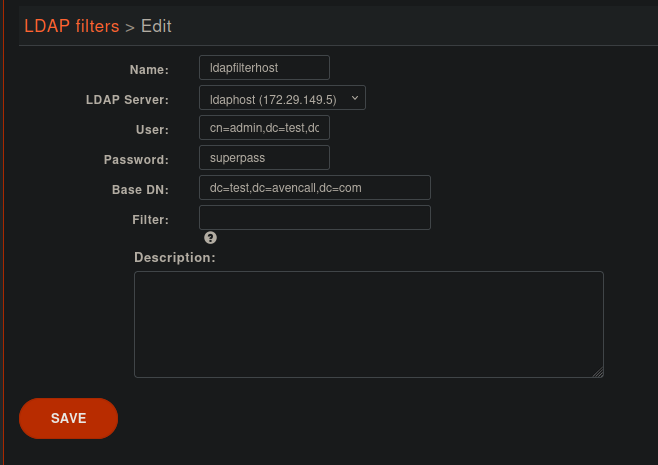

Adding a LDAP Filter

Enter the following information:

• Name: the filter’s display name

• LDAP server: the LDAP server this filter applies to

• User: the dn of the user used to do search requests

• Password: the password of the given user

• Base DN: the base dn of search requests

• Filter: if specified, changes the default filter

Use a Custom Filter

The Filter field has two rather different uses, depending on whether it contains the %Q pattern, which is replaced by what the user typed.

As a restriction, without %Q — the filter is combined with the direct match fields of the directory definition using an &. The per-word search still applies, and the filter only narrows the set of entries that can ever be returned. This is the recommended way to restrict a directory:

• st=Canada

• objectClass=inetOrgPerson

• mail=*@example.org

As the search itself, with %Q — the filter expresses the matching logic, and %Q receives the whole search term:

• cn=*%Q*

• &(cn=*%Q*)(mail=*@example.org)

• |(cn=*%Q*)(displayName=*%Q*)

Important

%Q never receives the individual words, so a filter using it requires the whole term to appear as one attribute. Prefer expressing the searched attributes in direct match and keeping the filter for conditions independent of the search term.

Warning

A filter without either %Q or any direct match breaks the search mechanism.

Add a Directory Definition

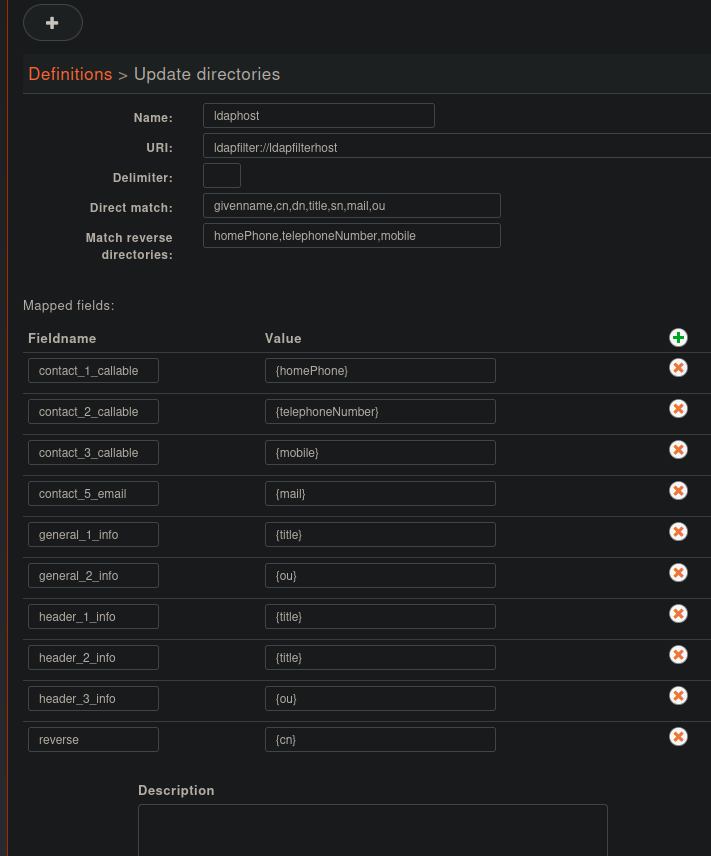

The next step is to add a directory defintion for the LDAP filter you just created, like for other Directories.

In Services ‣ CTI Server ‣ Directories ‣ Definitions:

Search on each word of the search term

The search term is split on spaces, and every word is searched in every field of direct match, the results being combined with an | (or).

• Given a directory definition with a direct match cn,o

• When a user searches for boyer

• Then the resulting filter is (|(cn=*boyer*)(o=*boyer*))

• When a user searches for boyer oli

• Then the resulting filter is (|(cn=*boyer*)(o=*boyer*)(cn=*oli*)(o=*oli*))

• If the LDAP filter also has a custom-filter st=Canada

• Then the resulting filter is &(st=Canada)(|(cn=*boyer*)(o=*boyer*)(cn=*oli*)(o=*oli*))

Because the words are combined with an |, an entry matching a single word is returned as well. Entries are then ranked with dird result ranking.

Note

Only spaces separate words here. A term such as jean-michel is searched as one word by the LDAP filter.
