XDS Architecture

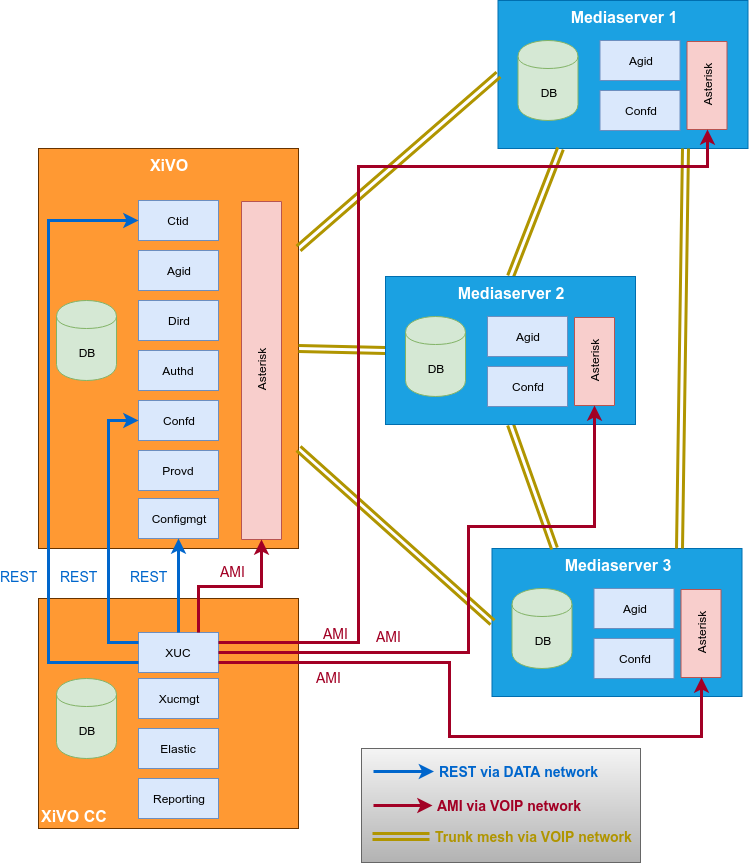

The following diagram presents the XDS architecture with:

  • one XiVO Main
  • one CTI / Reporting Server (XiVO CC)
  • and three MDS
../../_images/xds-architecture.png

As you can see:

  • each MDS and the Main are linked together via an internal SIP trunk (the yellow lines) - via the VoIP IP Address of the MDS
  • the xuc components of the CTI / Reporting Server is connected to each MDS AMI - via the VoIP IP Address of the MDS
