Recording

This page describes how to configure the recording feature on the XiVO PBX.

Important

Recording can also be activated on the XiVO Gateway. For this, you need to follow the Recording on Gateway guide. Beware that you cannot use both.

Recording Configuration

To configure recording there are two steps to follow on XiVO PBX:

1. Add link towards Recording Server,

2. and then enable recording, which can be done either:

• in the Queue configuration

• or via subroutines

1. Add link towards Recording Server

Note

Steps to be done on XiVO PBX

The first step is to configure the link towards the Recording Server by running the configuration script:

xivocc-recording-config <RECORDING_SERVER_HOST> <IPBX_NAME>

The parameters are:

Note

if one parameter is missing the script will ask them.

• the Recording Server FQDN or IP (e.g. 192.168.0.2)

• the XiVO PBX name (any space or dash (-) character will be removed)

  Important

  When configuring more than one XiVO PBX on the same Recording Server, give a different name to each of them.

After having configured the recording, you have to enable it in the Queue’s configuration or via sub-routines. See below.

2. Enable recording

Warning

At this time recording cannot be set at queue creation, only at queue edition.

Enable recording in the Queue configuration

Note

Steps to be done on XiVO PBX

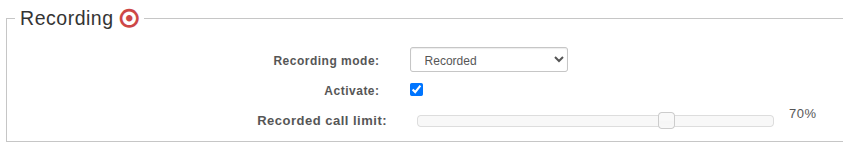

To enable recording on a queue, go to Services ‣ Contact Center ‣ Queues and edit the queue. Then, in the recording section, select your recording mode:

• Recorded:

  The calls will start recorded.

  To enhance GDPR compliance, recorded queues can be set to avoid recording more than a specific percentage of calls. If recording a call would go beyond this limit, the call will start its recording paused (the agent can enable it manually if it’s important). Set the slider to 100% to record every calls.

• Recorded on demand: The call always starts with its recording in paused state and can be started by the agent (see agent recording configuration)

  Activate toggles this mode on and off (allowing to move to Not recorded temporarily).

• Not recorded: no call will be recorded and the recording option wont be visible for the agent.

Enable recording via subroutines

Note

Steps to be done on XiVO PBX

To enable the recording you have to configure one of the shipped subroutines.

The package xivocc-recording (see recording installation section) ships the following dialplan subroutines :

Subroutine	Description
xivocc-incall-recording	Records incoming calls
xivocc-incall-recording-paused	Records incoming calls, but record starts in paused state and can be activated by the agent (see agent recording configuration)
xivocc-outcall-recording	Records outgoing calls
xivocc-outcall-recording-paused	Records outgoing calls, but record starts in paused state and can be activated by the agent (see agent recording configuration)

These subroutines are to be configured on the following XiVO PBX objects (either globally or per-object):

Warning

They MUST be configured only on the following objects. Other configuration are not supported.

• Incalls,

• and/or Users,

• and/or Outcall

---

Note

Here is an example if you want to enable recording for:

• All outbound calls but started in pause state,

• And only on incoming call 0123456789

Then you would have to:

1. Create a custom_global_subr.conf file in the /etc/asterisk/extensions_extra.d directory

2. If not already defined elsewhere define the global subroutine:

   [xivo-subrgbl-outcall]
   exten = s,1,NoOp(=== Recording outbound calls in pause ===)
   same = n,Gosub(xivocc-outcall-recording-paused,s,1)
   same = n,Return()


3. Enable the call recording for incall 0123456789 by editing it via the XiVO PBX web interface and set the field Pre-process subroutine to xivocc-incall-recording

Recording Features

Automatic Stop/Start Recording On Queues

By default recording is stopped when a call is transferred to a queues in Not Recorded mode (see the feature description: Automatic Stop/Start Recording On Queues).

This can be deactivated by adding ENABLE_RECORDING_RULES environment variable to the xuc section of your docker-xivocc.yml file:

xuc:
  image: ...

  environment:
  - ...
  - SECURED_KRB5_PRINCIPAL
  - ENABLE_RECORDING_RULES

and ENABLE_RECORDING_RULES=false value to your custom.env.

XIVO_HOST=192.168.1.1
XUC_HOST=192.168.1.2
XUC_PORT=8090
...
ENABLE_RECORDING_RULES=false

and then relaunch the xivocc services with xivocc-dcomp up -d command.

Stop recording upon external transfer

By default recording is stopped when both parties of the call are external (see the feature description: Automatic Stop Recording Upon External Transfer).

This can be deactivated by adding STOP_RECORDING_UPON_EXTERNAL_XFER environment variable to the xuc section of your docker-xivocc.yml file:

xuc:
  image: ...

  environment:
  - ...
  - SECURED_KRB5_PRINCIPAL
  - STOP_RECORDING_UPON_EXTERNAL_XFER

and STOP_RECORDING_UPON_EXTERNAL_XFER=false value to your custom.env.

XIVO_HOST=192.168.1.1
XUC_HOST=192.168.1.2
XUC_PORT=8090
...
STOP_RECORDING_UPON_EXTERNAL_XFER=false

and then relaunch the xivocc services with xivocc-dcomp up -d command.

Manual purge of recording

Recording files are automatically deleted after the configured time (set during installation, see Installation).

However you can mark a recording to be deleted before the configured expiration time by attaching a specific data to the call you want to remove the recording. To do this, use the Attach call data API with the following body:

• key: xivo_recording_expiration

• value: a datetime formatted as yyyy-MM-dd HH:mm:ss

Recording filtering configuration

Note

Steps to be done on XiVO CC

After having followed above paragraphs, you can also configure the recording filtering.

1. Add a user with Administrateur rights for Recording Server:

   1. Connect to the Config Management interface : http://<XIVO_CC_IP>/configmgt (login avencall/superpass),

   2. Add one of the XiVO PBX user giving him Administrateur rights,

2. Configure excluded numbers on Recording Server

   1. Then, connect with this user to the Recording Server interface : http://<XIVO_CC_IP>/recording

   2. Navigate to the page Contrôle d'enregistrement and add the numbers to be excluded from the recording.

In list Destinataire de l’appel (Numéro entrant, File d’attente, Utilisateur) declare the:

• XiVO Incalls numbers,

• XiVO Queues numbers,

• or XiVO Users numbers

to be excluded from the recording on incoming or internal call. These numbers will be checked by the xivocc-incall-recording subroutines.

Note

numbers must be entered as they first appear in dialplan (check is made against XIVO_DSTNUM dialplan variable).

In list Emetteur ou destinataire d’un appel sortant (Utilisateur ou numéro appelé externe) declare the:

• XiVO Users internal numbers

to be excluded from recording on outgoing calls. These numbers will be checked by the xivocc-outcall-recording subroutines.

Note

check is made against XIVO_SRCNUM dialplan variable.
